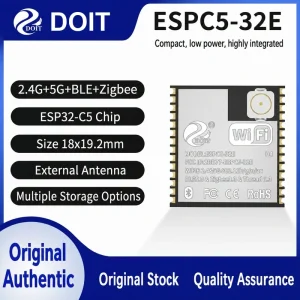

Description

The ESPC5-32E is a highly integrated, low-power module that supports concurrent dual-band Wi-Fi 6 operation at 2.4 GHz and 5 GHz, together with Bluetooth Low Energy (BLE). It incorporates an IEEE 802.11 b/g/n/ax wireless local area network (WLAN) controller, a 240 MHz CPU, a WLAN MAC, a 1T1R WLAN baseband, RF circuitry, and Bluetooth functionality on a single chip. It also provides a range of configurable GPIOs that can be assigned to digital peripherals for various applications and control functions.

The ESPC5-32E integrates a wide range of peripherals, including SPI, parallel I/O, ADC, UART, I²C, I²S, RMT (TX/RX), LED pulse-width modulation (PWM), USB Serial, a JTAG controller, MCPWM, an SDIO 2.0 slave controller, GDMA, a TWAI controller, on-chip JTAG debugging, an Event Task Matrix (ETM), and up to 22 GPIOs.

The ESPC5-32E includes an IEEE 802.15.4 subsystem with integrated PHY and MAC layers. It supports a variety of software stacks and protocols, including Thread, Zigbee, Matter, HomeKit, MQTT, and more.

The ESPC5-32E module is built around the ESP32-C5 SoC and supports the coexistence of Wi-Fi and BLE.

The ESPC5-32E module integrates internal memory to provide full Wi-Fi protocol functionality. Its embedded memory configuration also simplifies application development.

The ESPC5-32E module supports the IEEE 802.11 b/g/n/ax standards and a complete TCP/IP protocol stack. It can be used to add Wi-Fi connectivity to existing devices or operate as a standalone network controller.

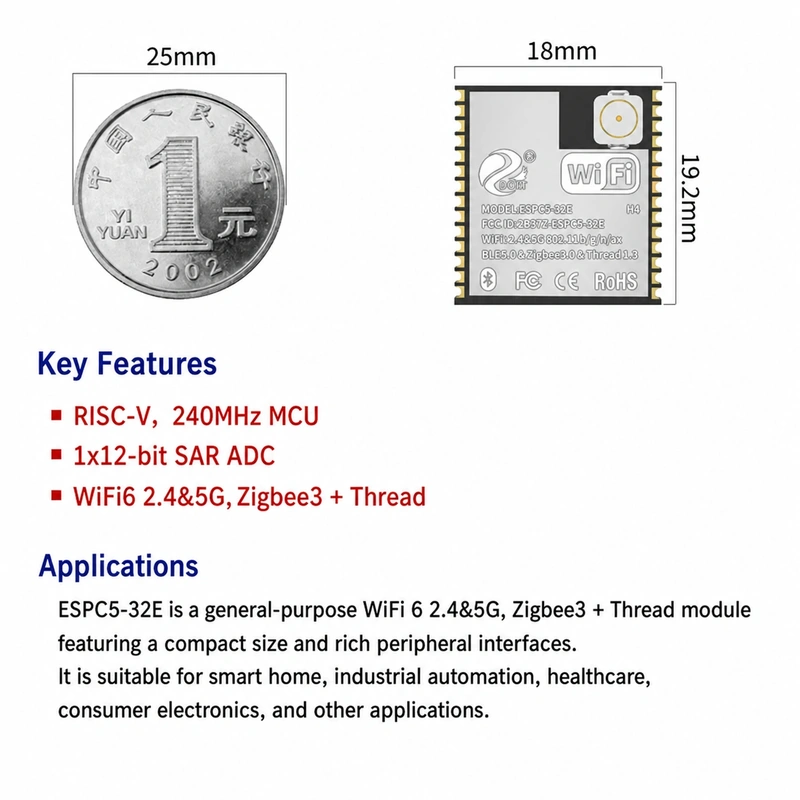

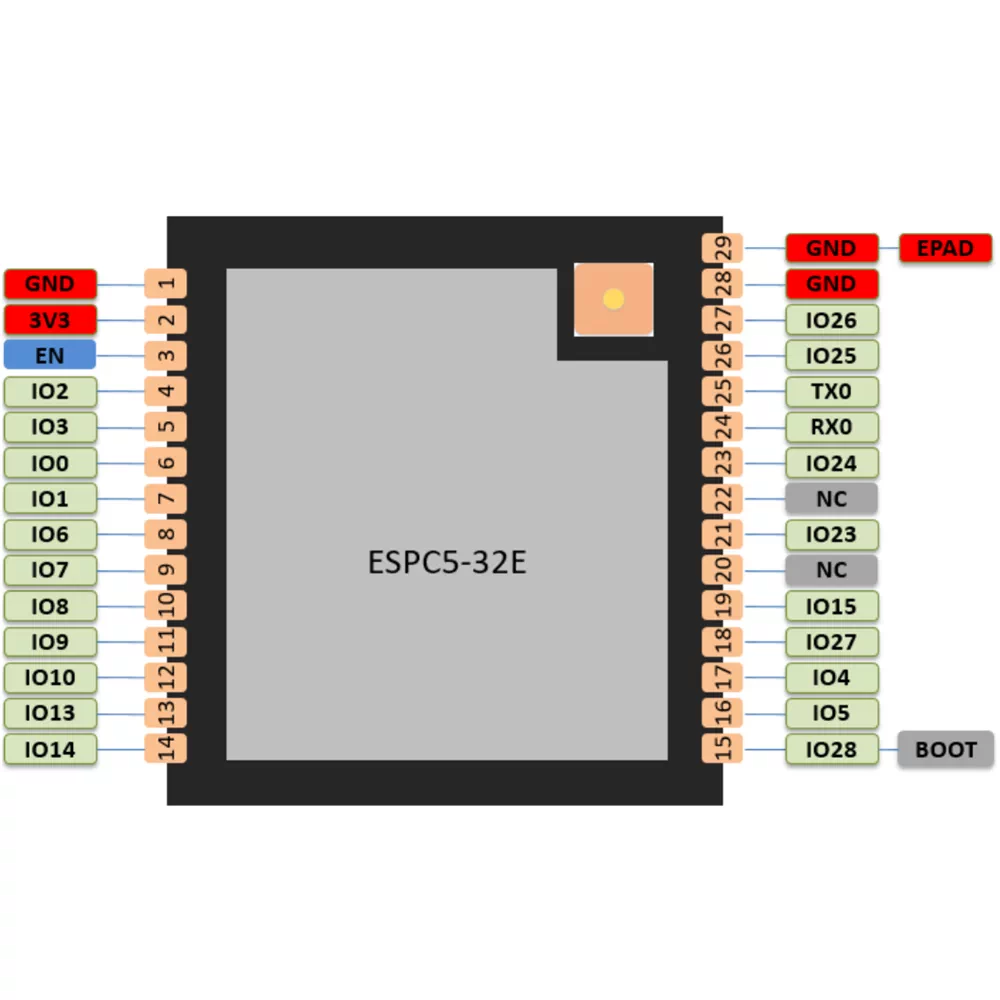

1、Pin Definition Diagram

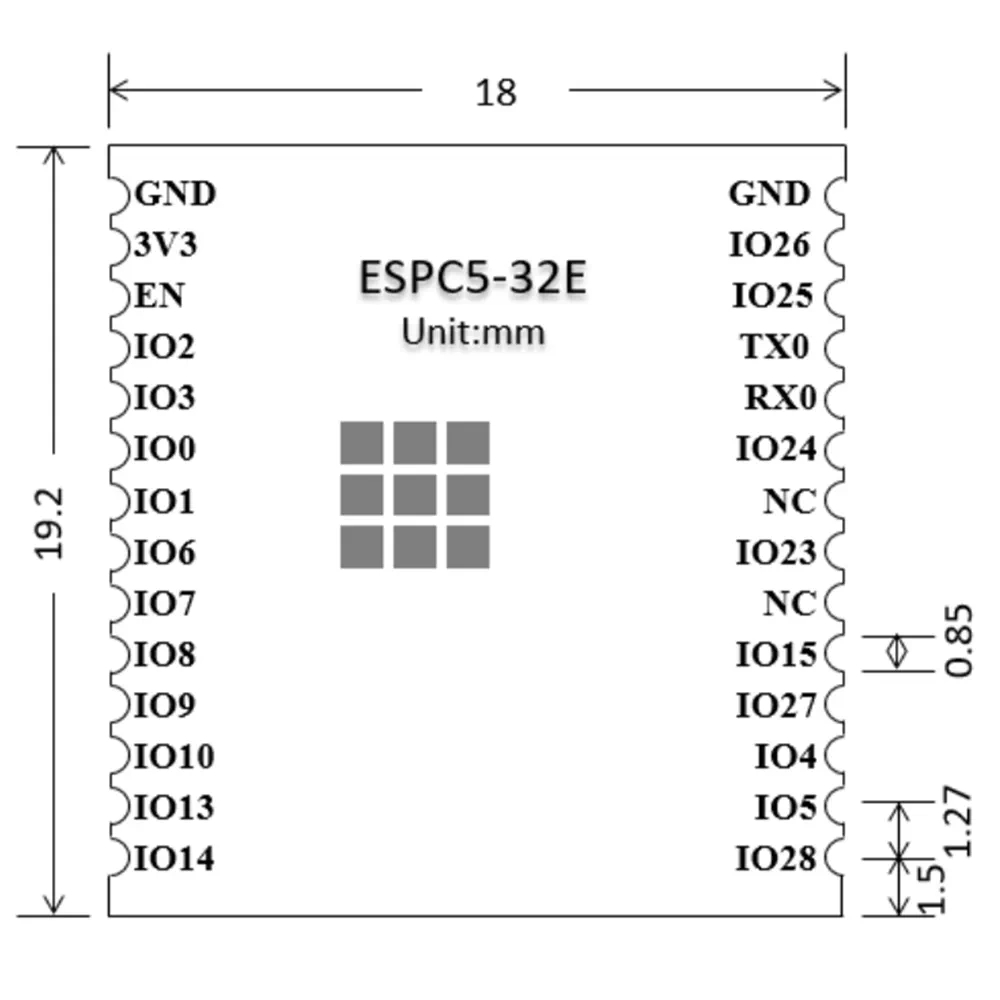

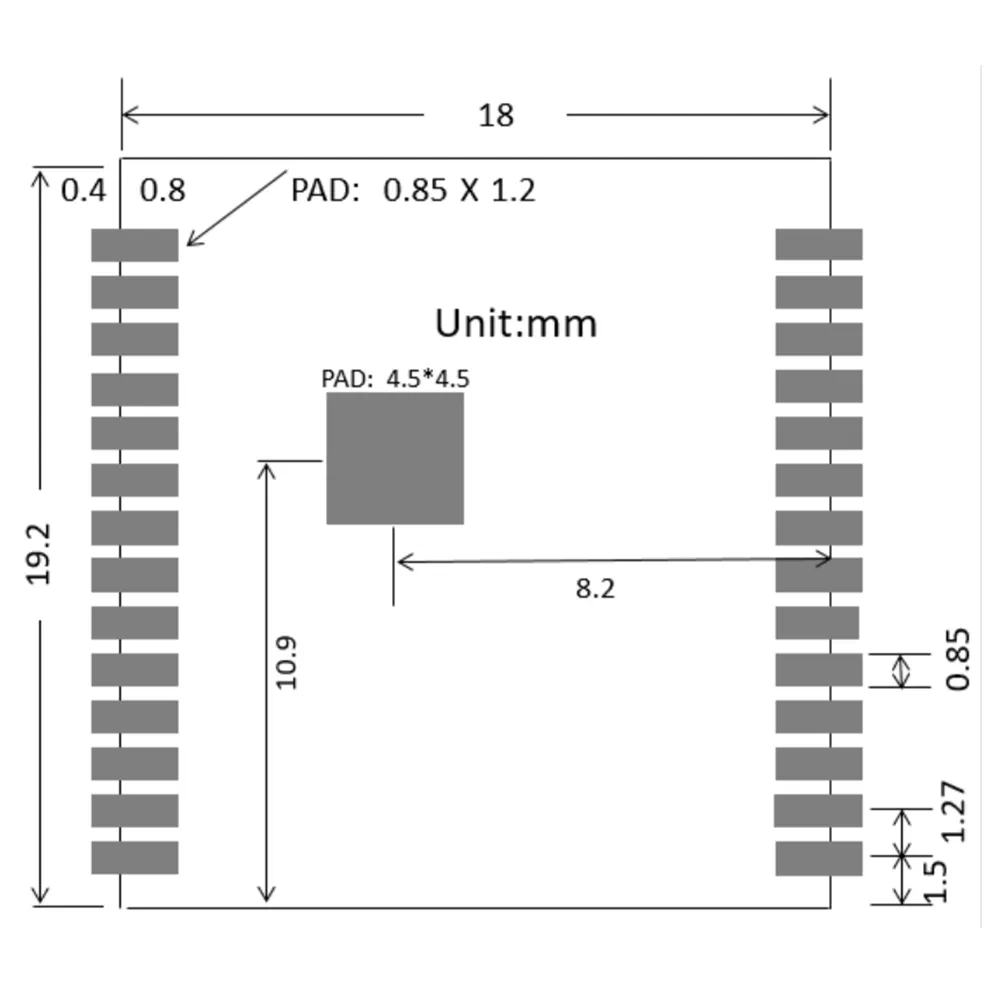

2、Dimension Drawing
