Name: Espressif ESPC3 Series ESPC3-02 Module, Wi-Fi + BLE, Compatible with ESP8685-03 Series Modules
SKU: 239
Availability: InStock

Espressif ESPC3 Series ESPC3-02 Module, Wi-Fi + BLE, Compatible with ESP8685-03 Series Modules

For bulk pricing or OEM/ODM solutions, please contact [email protected]

Module Memory

Clear

Guaranteed secure checkout

Trusted & Secure Payments

Description

Parameter information

model: ESPC3-02

brand: DOIT

Origin: Chinese mainland

Image and text details

The ESPC3-02 Wi-Fi and BLE coexistence module is a highly integrated, low-power, single-chip IEEE 802.11 b/g/n wireless local area network (WLAN) controller.

It integrates a RISC-V CPU, WLAN MAC, a 1T1R-capable WLAN baseband, RF circuitry, and Bluetooth functionality into a single chip. It also provides numerous configurable GPIOs that can be assigned to digital peripherals for various application and control purposes.

The ESPC3-02 module uses the ESP8685 as its Wi-Fi and BLE coexistence SoC

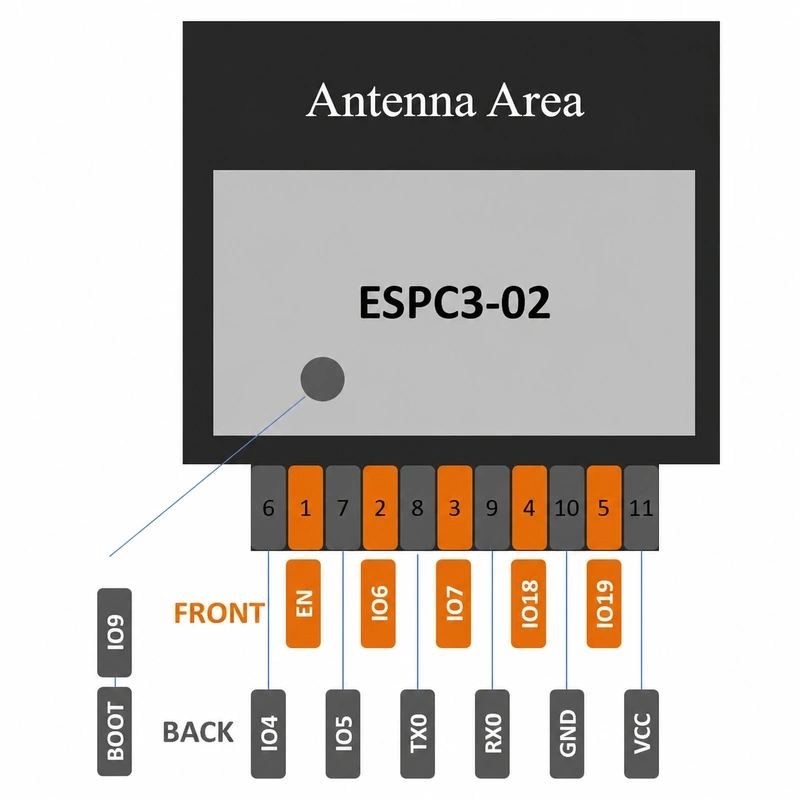

1、Pinout Diagram

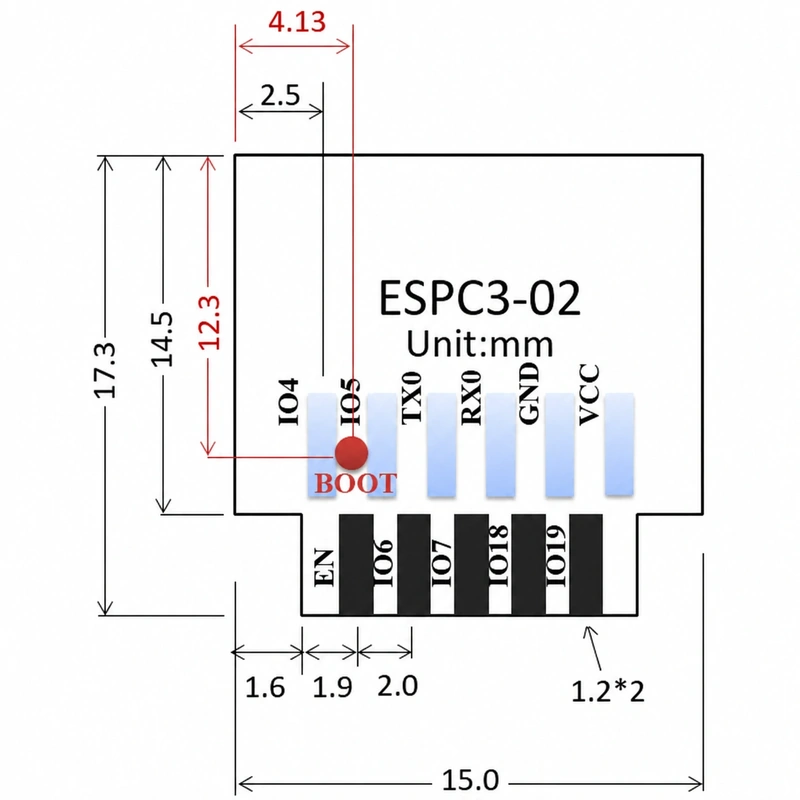

2、Mechanical Dimensions

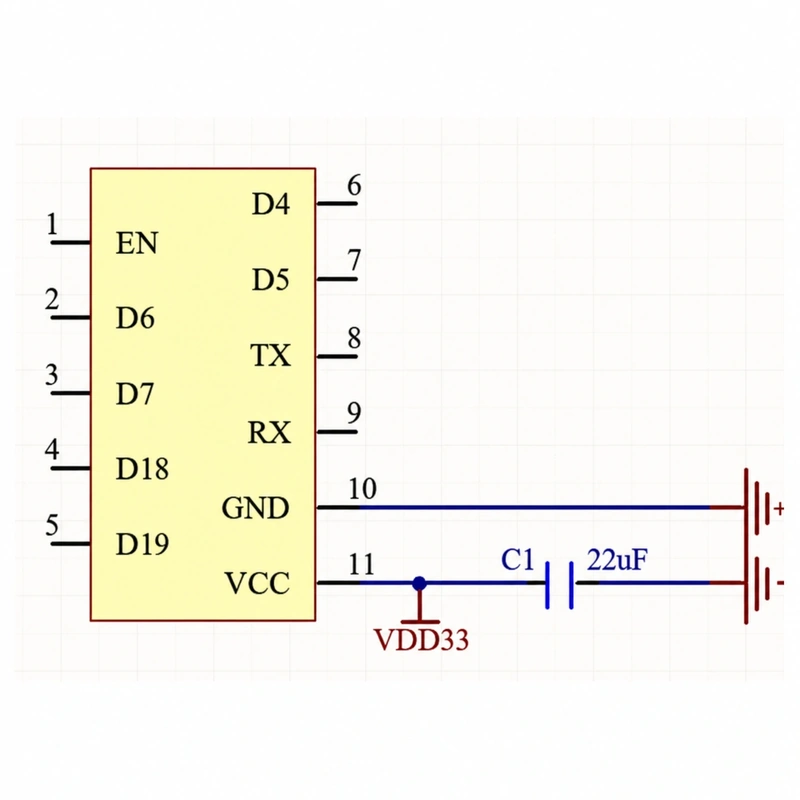

3、schematic diagram

Additional information

Module Memory	N2, N4
