Name: Espressif ESPS3 Series ESPS3-32 Module, Wi-Fi + Bluetooth, Compatible with Mainstream ESP32-S3 Modules
SKU: 219
Availability: InStock

Espressif ESPS3 Series ESPS3-32 Module, Wi-Fi + Bluetooth, Compatible with Mainstream ESP32-S3 Modules

For bulk pricing or OEM/ODM solutions, please contact [email protected]

Modular memory

Clear

Guaranteed secure checkout

Trusted & Secure Payments

Description

Parameter information

model： ESPS3-32
brand： MUST
Origin： Chinese mainland
Antenna type： Onboard
sort by color： ESPS3-32 [Onboard Antenna]

Image and text details

The ESPS3-32 Wi-Fi and BLE coexistence module is a highly integrated, low-power, single-chip 802.11b/g/n wireless local area network (WLAN) controller. It integrates a dual-core 240 MHz CPU, WLAN MAC, 1T1R WLAN baseband, RF, and Bluetooth into a single chip. It also provides a range of configurable GPIOs that can be configured as digital peripherals for different applications and control purposes.

The ESPS3-32 integrates a rich set of peripherals, including SPI, parallel I/O, ADC, UART, I2C, I2S, RMT (TX/RX), LED pulse-width modulation (PWM), a USB 2.0 serial port, a JTAG controller, MCPWM, an SDIO slave controller, GDMA, a TWAI controller, JTAG debugging functionality, and up to 36 GPIOs.

The ESPS3-32 module uses the ESPS3-32 as its Wi-Fi and BLE coexistence SoC.

The ESPS3-32 module integrates internal memory, enabling full Wi-Fi protocol functionality.

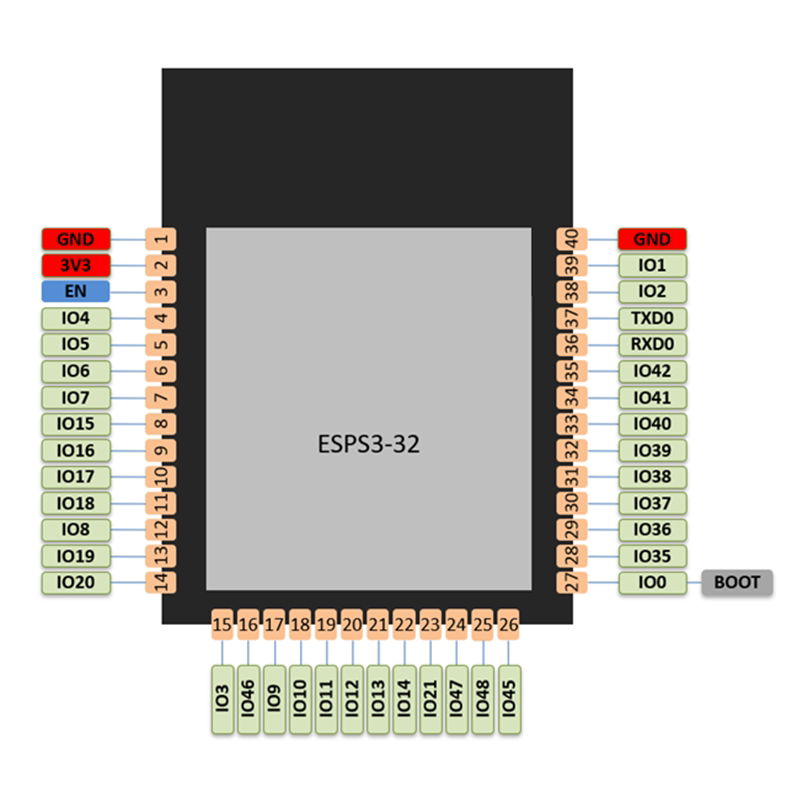

1、Pin Definition Diagram

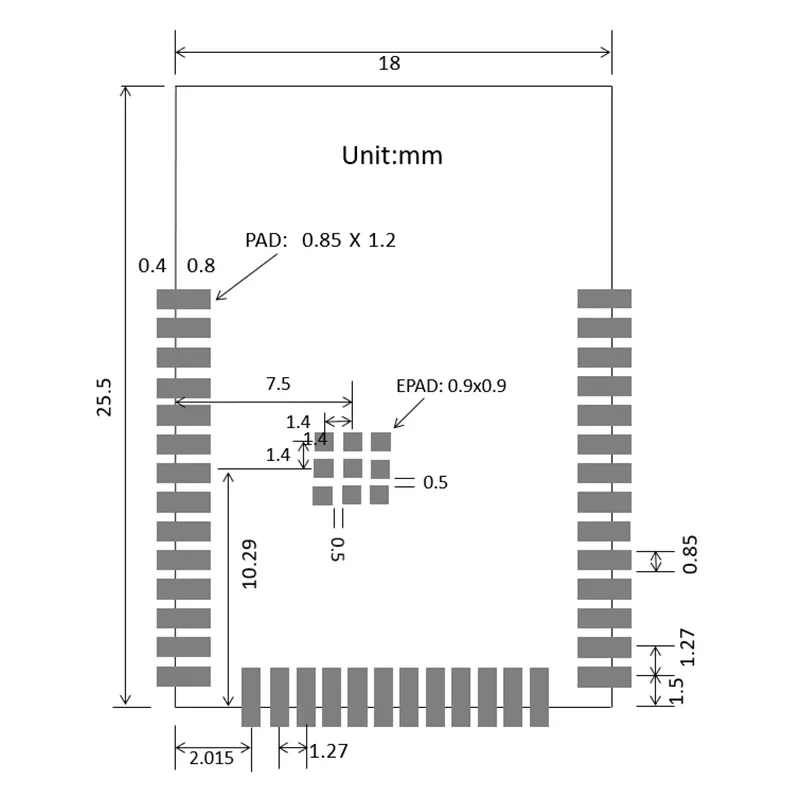

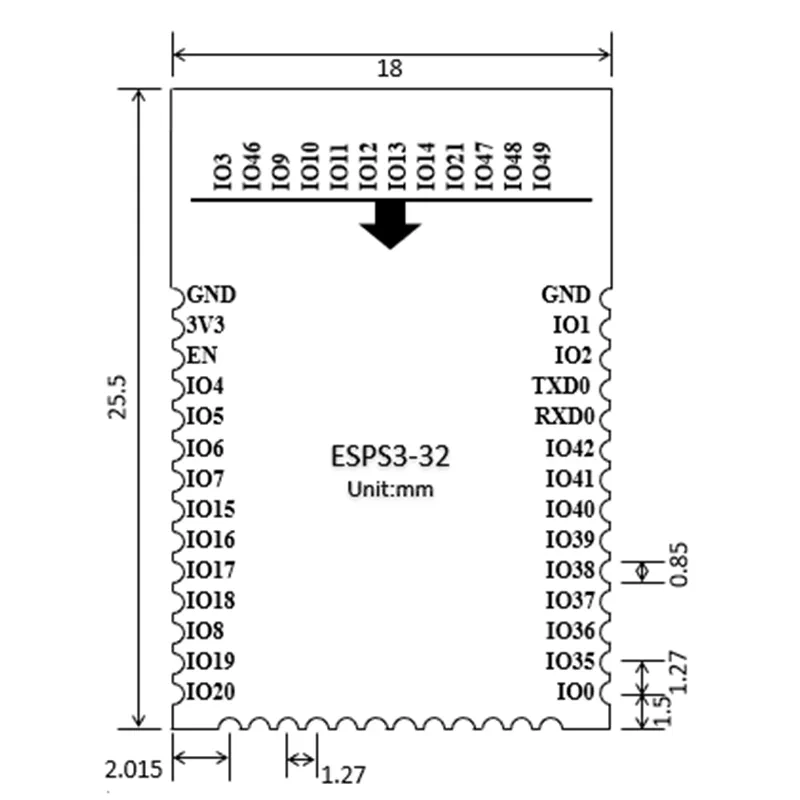

2、Dimension Drawing

Additional information

Modular memory	N4, N8, N8R2, N16R2, N16R8
