Name: Espressif ESPS3 Series ESPS3-32E Module, Wi-Fi + Bluetooth, Compatible with Mainstream ESP32-S3 Modules
SKU: 232
Availability: InStock

Espressif ESPS3 Series ESPS3-32E Module, Wi-Fi + Bluetooth, Compatible with Mainstream ESP32-S3 Modules

For bulk pricing or OEM/ODM solutions, please contact [email protected]

Module Memory

Clear

Guaranteed secure checkout

Trusted & Secure Payments

Description

Parameter information

model: ESPS3-32E

brand: doit

Place of origin: Chinese mainland

Antenna type: external

Image and text details

The ESPS3-32E Wi-Fi and BLE coexistence module is a highly integrated, low-power, single-chip IEEE 802.11 b/g/n wireless local area network (WLAN) controller. It integrates a dual-core 240 MHz CPU, a WLAN MAC, a 1T1R-capable WLAN baseband, RF circuitry, and Bluetooth functionality into a single chip. It also provides a wide range of configurable GPIOs that can be assigned to digital peripherals for various application and control purposes.

The ESPS3-32E integrates a rich set of peripherals, including SPI, parallel I/O, ADC, UART, I²C, I²S, RMT (TX/RX), LED pulse-width modulation (PWM), a USB 2.0 serial port, a JTAG controller, MCPWM, an SDIO slave controller, GDMA, a TWAI controller, JTAG debugging, and up to 36 GPIOs.

The ESPS3-32E module uses the ESPS3-32E as its Wi-Fi and BLE coexistence SoC.

The ESPS3-32E module incorporates internal memory to provide full Wi-Fi protocol functionality.

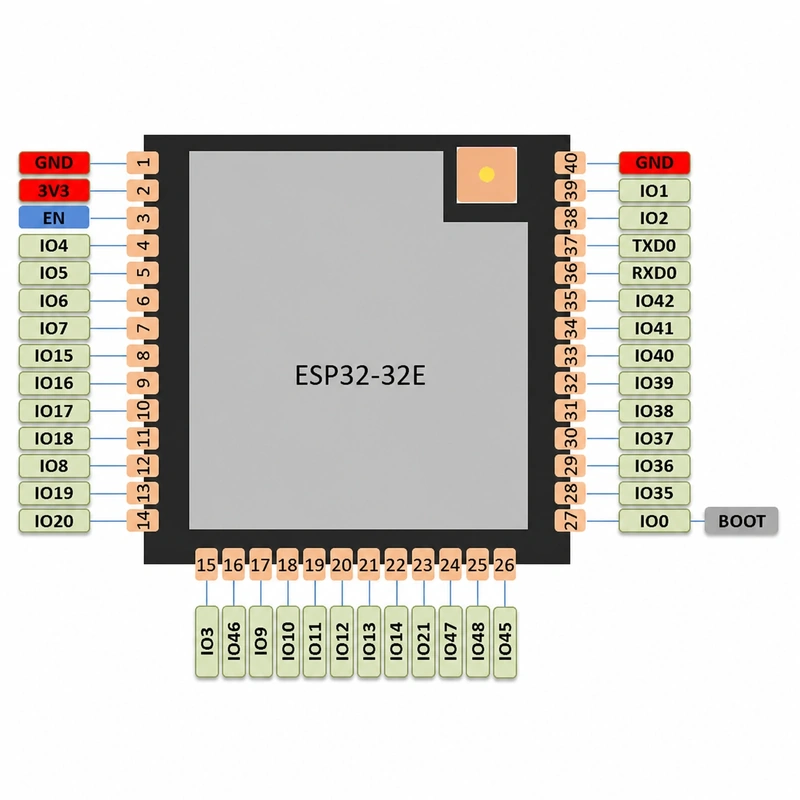

1、Pinout Diagram

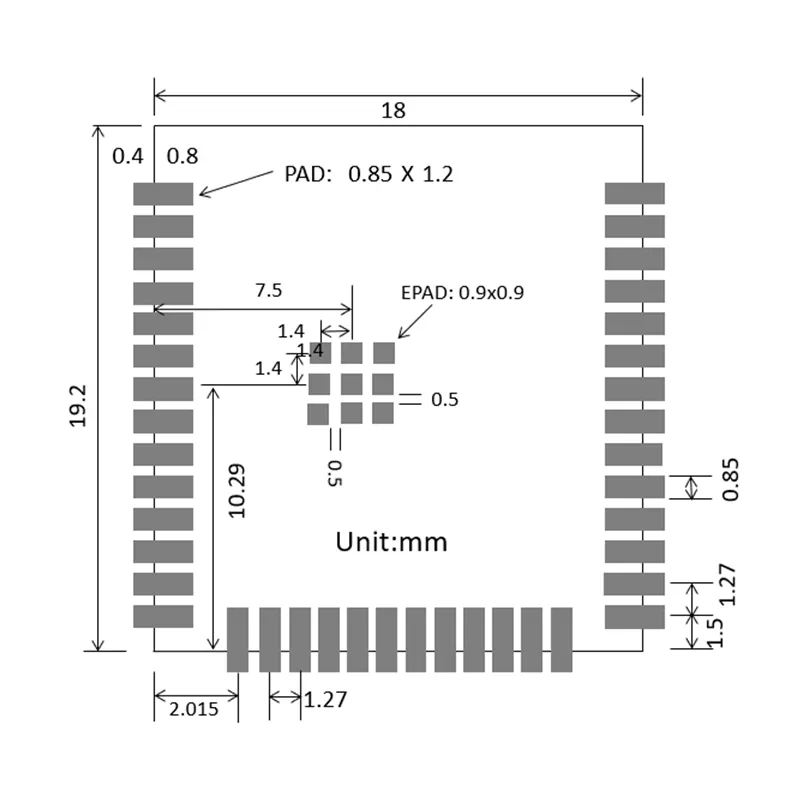

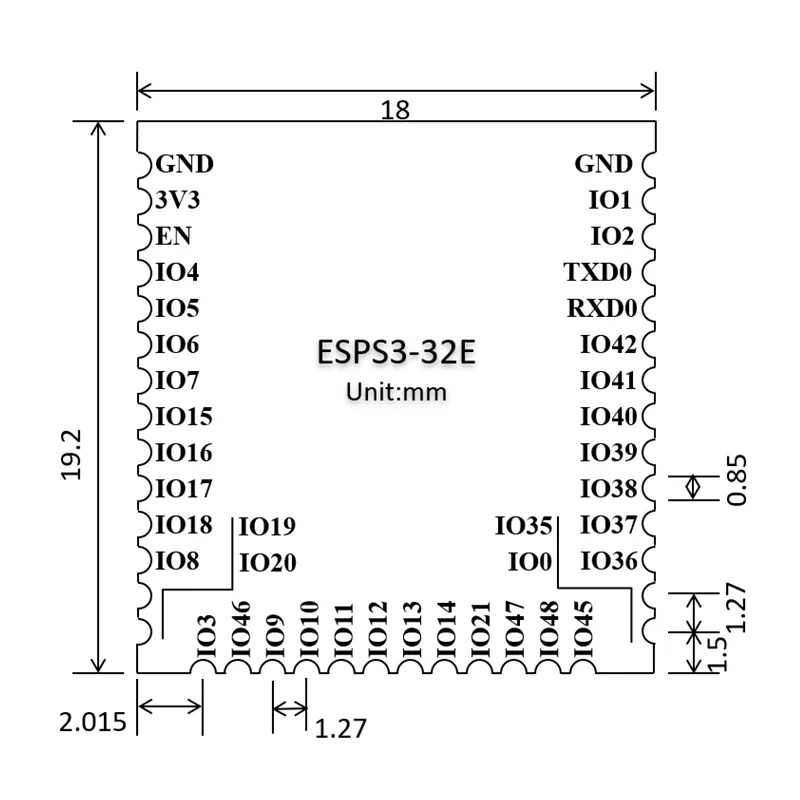

2、Mechanical Dimensions

Additional information

Module Memory	N4, N16R2, N16R8
